Hack ForcePoint N120

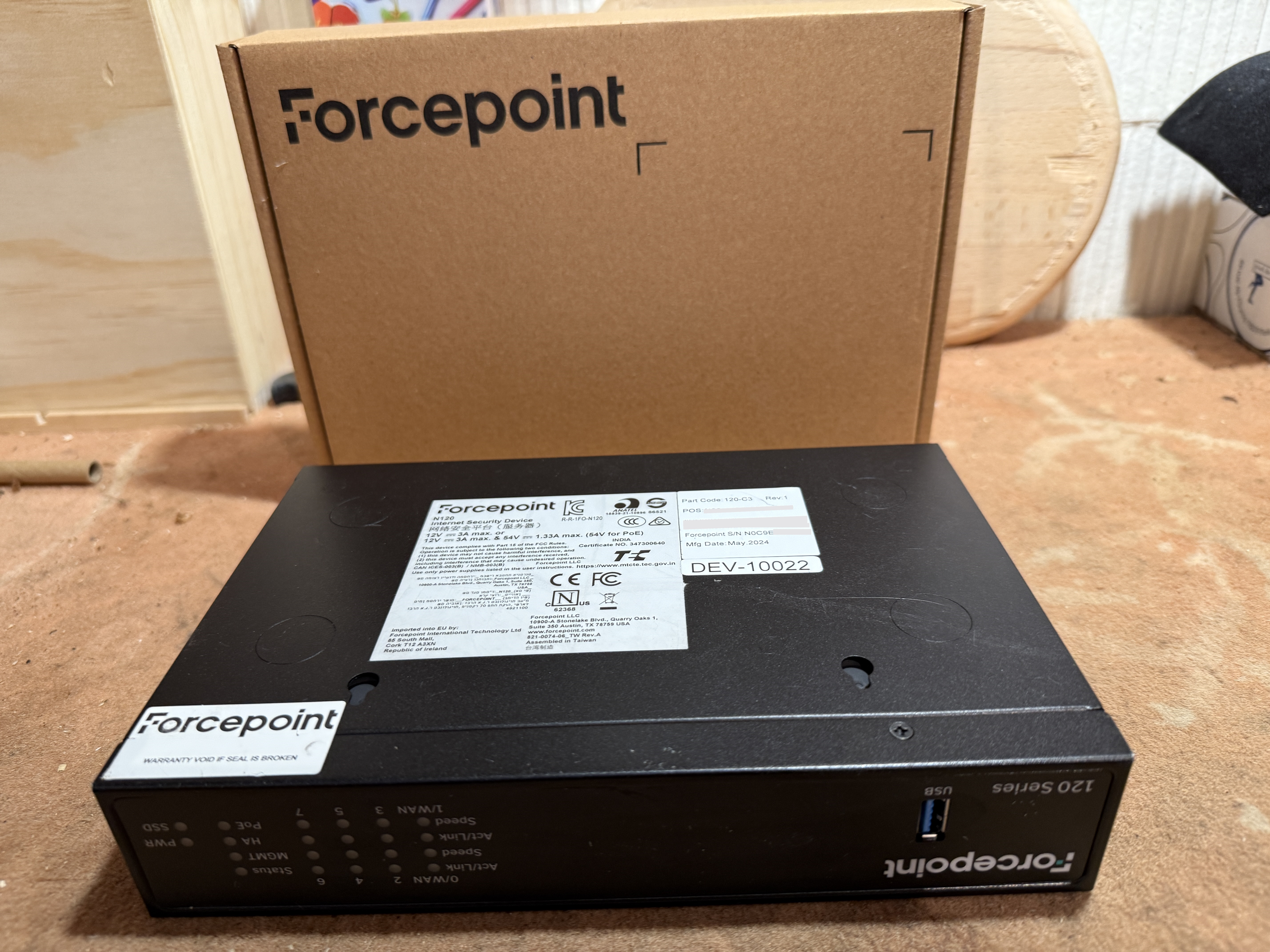

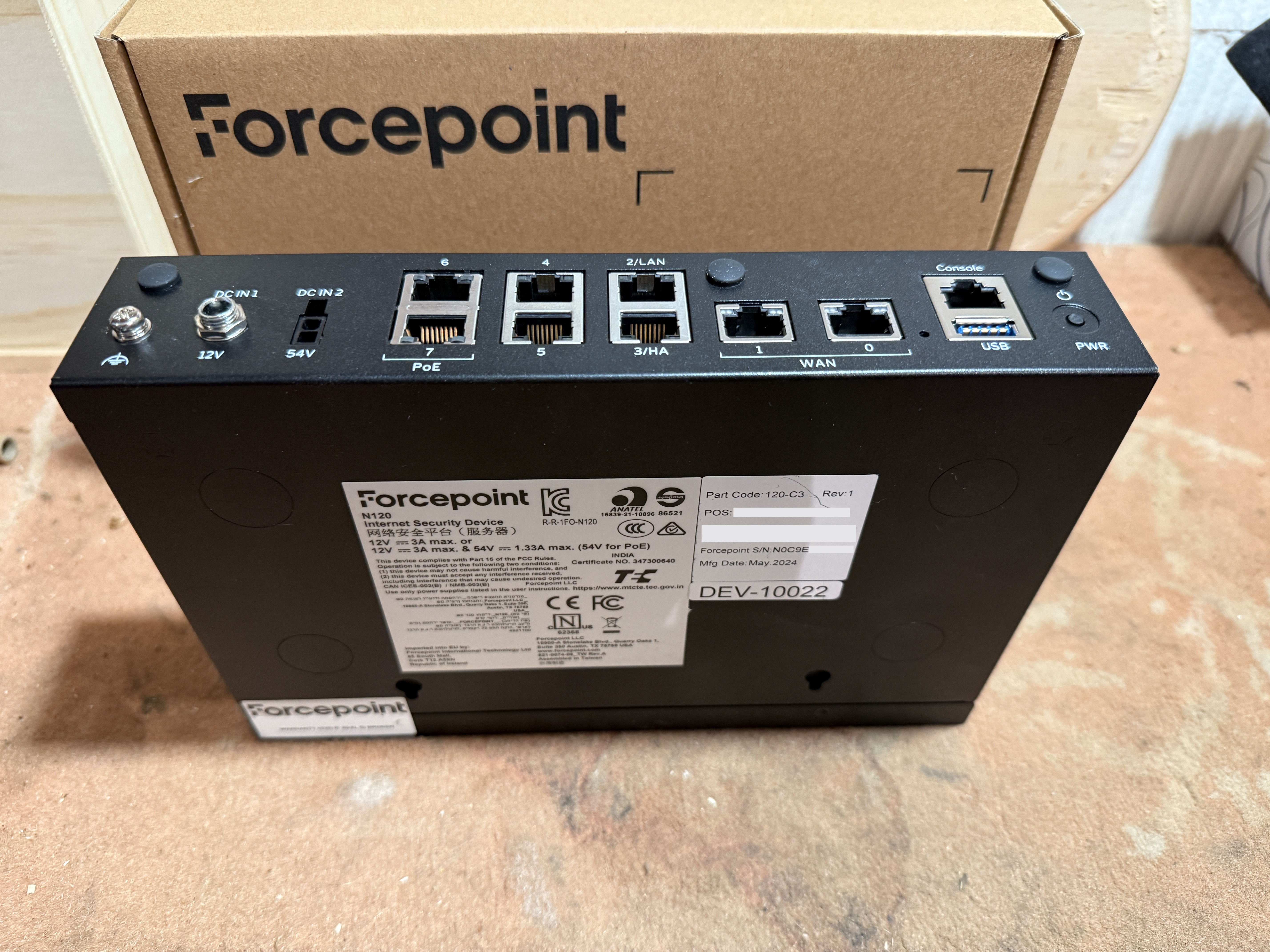

1. Unboxing

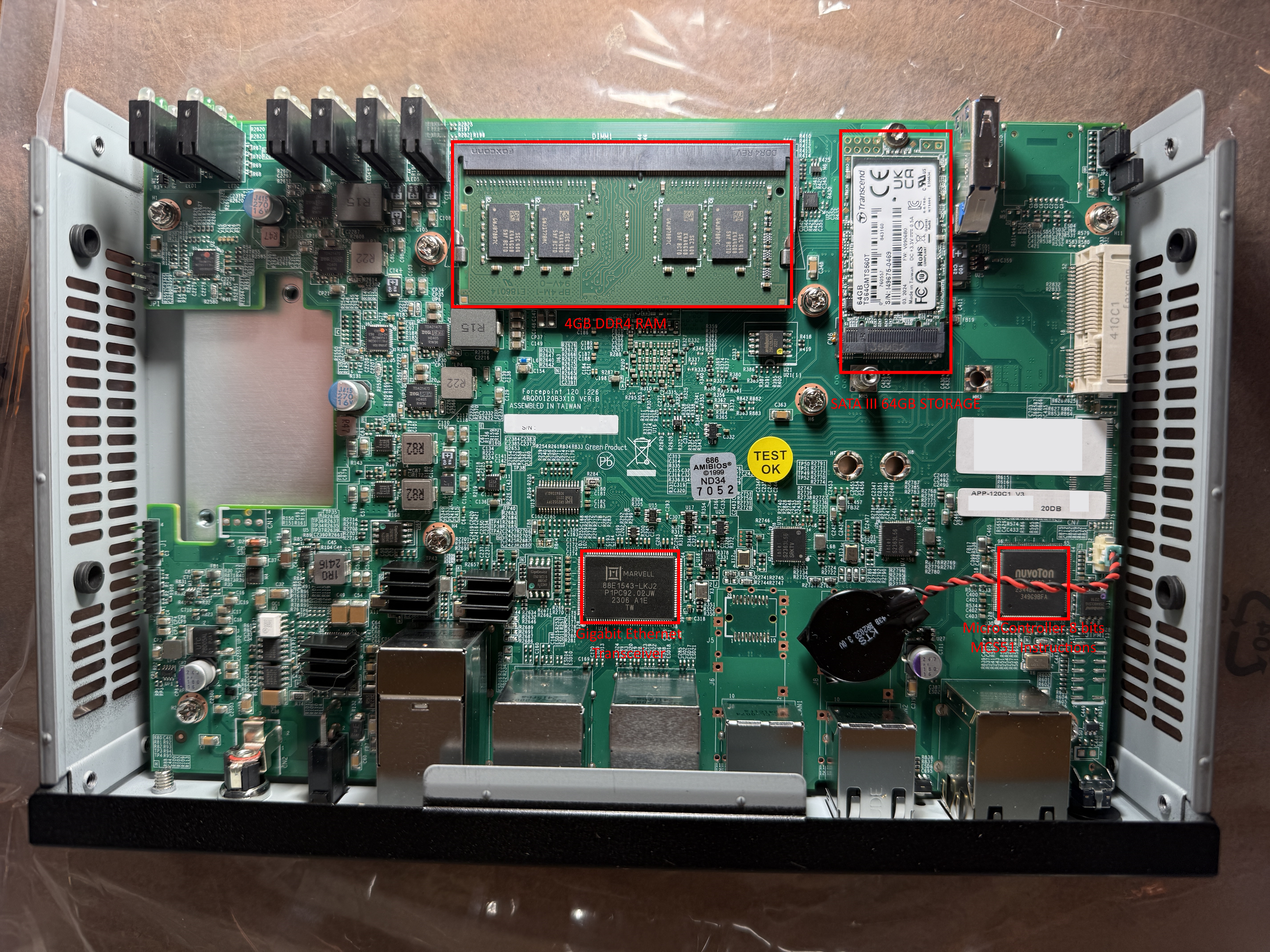

1.1 Ouverture du capot
- CPU = NUVOTON NCT6686D
- Storage = TRANSCEND MTS560T
- RAM = APACER 4GB DDR4
- Network = MARVELL Ethernet Transceiver
2. Analyse Statique
Montage du disque SATA III sous KALI
Bit Copy du disque et premier fdisk
1$ sudo dd if=/dev/sdb of=./ForcePoint-N120.dd bs=4M status=progress
2
3$ fdisk -l ForcePoint-N120.dd
4Disk ForcePoint-N120.dd: 59.63 GiB, 64023257088 bytes, 125045424 sectors
5Units: sectors of 1 * 512 = 512 bytes
6Sector size (logical/physical): 512 bytes / 512 bytes
7I/O size (minimum/optimal): 512 bytes / 512 bytes
8Disklabel type: dos
9Disk identifier: 0x975bcfde
1Device Boot Start End Sectors Size Id Type
2ForcePoint-N120.dd0 * 2048 12287 10240 5M 83 Linux
3ForcePoint-N120.dd1 12288 22527 10240 5M 83 Linux
4ForcePoint-N120.dd2 22528 32767 10240 5M 83 Linux
5ForcePoint-N120.dd3 32768 30724095 30691328 14.6G 5 Extended
6ForcePoint-N120.dd4 34816 2185215 2150400 1G 83 Linux
7ForcePoint-N120.dd5 2187264 4337663 2150400 1G 83 Linux
8ForcePoint-N120.dd6 4339712 8435711 4096000 2G 82 Linux swap / Solaris
9ForcePoint-N120.dd7 8437760 12738559 4300800 2.1G 83 Linux
10ForcePoint-N120.dd8 12740608 30724095 17983488 8.6G 83 Linux
On monte tout ça...
1$ sudo losetup --partscan --find --show ForcePoint-N120.dd
2$ sudo mount /dev/loop0pX /mnt/ForcePoint/ddX
2.1 Partition Boot (dd0)
Partition de démarrage contenant Grub
Seul fichier intéressant à ce stade : /boot/grub/menu.lst
1timeout 5
2default saved
3
4serial --unit=0 --speed=115200 --word=8 --parity=no --stop=1
5terminal --timeout=4 serial console
6
7title Forcepoint NGFW A: 7.1.7.29322
8chainloader (hd0,1)+1
9savedefault
10
11
12title Forcepoint NGFW B: 6.10.16.26802.custom.1
13chainloader (hd0,2)+1
14savedefault
On choisit la version que l'on souhaite et en fonction on boot sur dd1 ou dd2
2.2 Partition Boot NGFW 7.1.7 (dd1)
On retombe sur une partition contenant un Grub :
1timeout 5
2root (hd0,1)
3default saved
4fallback 0
5serial --unit=0 --speed=115200 --word=8 --parity=no --stop=1
6terminal --timeout=4 serial console
7()
8title Boot Forcepoint NGFW (partition A, SMP, console on 1st serial port, 115200 8-N-1)
9
10kernel (hd0,4)/boot/vmlinuz+smp root=/dev/ram0 init=/linuxrc SGSIDE=A crashkernel=512M-64G:96M,64G-:256M console=tty0 console=ttyS0,115200 SGCONS_1L=0 SGCONS_0S=0,115200
11initrd (hd0,4)/boot/bootrd.img
12
13title Switch to local console
14
15kernel (hd0,4)/boot/vmlinuz+smp root=/dev/ram0 init=/linuxrc SGSIDE=A crashkernel=512M-64G:96M,64G-:256M console=tty0 SGCONS_0L=0
16initrd (hd0,4)/boot/bootrd.img
17
18title Switch to uniprocessor (UP) kernel
19
20kernel (hd0,4)/boot/vmlinuz+up root=/dev/ram0 init=/linuxrc SGSIDE=A crashkernel=512M-64G:96M,64G-:256M console=tty0 console=ttyS0,115200 SGCONS_1L=0 SGCONS_0S=0,115200
21initrd (hd0,4)/boot/bootrd.img
22
23title System restore options
24
25kernel (hd0,4)/boot/vmlinuz+smp root=/dev/ram0 init=/linuxrc SGSIDE=A crashkernel=512M-64G:96M,64G-:256M console=tty0 console=ttyS0,115200 SGCONS_1L=0 SGCONS_0S=0,115200 SGCLEAR=1
26initrd (hd0,4)/boot/bootrd.img
Le kernel et les binaires 7.1.7 se trouvent sur dd4
2.3 Partition Boot NGFW 6.10.16 (dd2)
A nouveau un Grub :
1timeout 5
2root (hd0,2)
3default saved
4fallback 0
5serial --unit=0 --speed=115200 --word=8 --parity=no --stop=1
6terminal --timeout=4 serial console
7()
8title Boot Forcepoint NGFW (partition B, SMP, console on 1st serial port, 115200 8-N-1)
9
10kernel (hd0,5)/boot/vmlinuz+smp root=/dev/ram0 init=/linuxrc SGSIDE=B crashkernel=512M-64G:96M,64G-:256M console=tty0 console=ttyS0,115200 SGCONS_1L=0 SGCONS_0S=0,115200
11initrd (hd0,5)/boot/bootrd.gz
12
13title Switch to local console
14
15kernel (hd0,5)/boot/vmlinuz+smp root=/dev/ram0 init=/linuxrc SGSIDE=B crashkernel=512M-64G:96M,64G-:256M console=tty0 SGCONS_0L=0
16initrd (hd0,5)/boot/bootrd.gz
17
18title Switch to uniprocessor (UP) kernel
19
20kernel (hd0,5)/boot/vmlinuz+up root=/dev/ram0 init=/linuxrc SGSIDE=B crashkernel=512M-64G:96M,64G-:256M console=tty0 console=ttyS0,115200 SGCONS_1L=0 SGCONS_0S=0,115200
21initrd (hd0,5)/boot/bootrd.gz
22
23title System restore options
24
25kernel (hd0,5)/boot/vmlinuz+smp root=/dev/ram0 init=/linuxrc SGSIDE=B crashkernel=512M-64G:96M,64G-:256M console=tty0 console=ttyS0,115200 SGCONS_1L=0 SGCONS_0S=0,115200 SGCLEAR=1
26initrd (hd0,5)/boot/bootrd.gz
Le kernel et les binaires 6.10.16 se trouvent sur dd5
2.3 Partition Kernel et Binaires ForcePoint (StoneGate) (dd4)
On a un kernel de ce type :
1$ file boot/vmlinuz+smp
2boot/vmlinuz+smp: Linux kernel x86 boot executable bzImage, version 5.10.211+smp (gatebuilder@ip-10-147-1-43.eu-central-1.compute.internal) #1 SMP Mon Dec 9 08:49:21 UTC 2024, RO-rootFS, swap_dev 0X7, Normal VGA
Le système init a été remplacé par minit
Sequence de démarrage dans /etc/minit à lire en tenant en compte les dépendances (depends)
Quelques fichiers/répertoires intéressants :
1$ sudo find . -name "*stonegate*" -ls
2 122 1 -rwxr-xr-x 1 root root 303 Jan 8 04:29 ./etc/ldap/initial-stonegate.ldif
3 713 0 drwxr-xr-x 2 root root 53 Jan 8 04:28 ./etc/minit/initialize_mkdir_varrunstonegate
4 848 0 drwxr-xr-x 2 root root 26 Jan 8 04:28 ./etc/minit/killall_stonegate
5 1138 0 drwxr-xr-x 2 root root 30 Jan 8 04:28 ./etc/minit/pre_stonegate_daemons
6 1266 0 drwxr-xr-x 3 root root 81 Jan 8 04:28 ./etc/minit/serial_getty_stonegate
7 1371 0 drwxr-xr-x 3 root root 49 Jan 8 04:28 ./etc/minit/shutdown_stonegate
8 1547 0 drwxr-xr-x 3 root root 52 Jan 8 04:28 ./etc/minit/stonegate_boot
9 1554 0 drwxr-xr-x 3 root root 53 Jan 8 04:35 ./etc/minit/stonegate_daemons
10 1562 0 drwxr-xr-x 3 root root 76 Jan 8 04:28 ./etc/minit/stonegate_kernel_module
11 1645 0 lrwxrwxrwx 1 root root 33 Jan 8 04:33 ./etc/modprobe.d/01_stonegate_modules.conf -> /usr/share/stonegate/modules.conf
12 1706 1 -rw-r--r-- 1 root root 12 Jan 8 04:35 ./etc/stonegate-version
13 2285 0 drwxr-xr-x 3 root root 35 Jan 8 04:26 ./lib/firmware/stonegate
14 2733 0 lrwxrwxrwx 1 root root 13 Jan 8 04:33 ./lib/modules/5.10.211+smp/kernel/stonegate -> ../stonegate/
15 2746 0 drwxr-xr-x 3 root root 125 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate
16 2749 78 -rw-r--r-- 1 root root 79088 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_1.ko
17 2750 105 -rw-r--r-- 1 root root 107272 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_10.ko
18 2751 180 -rw-r--r-- 1 root root 184056 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_11.ko
19 2752 36 -rw-r--r-- 1 root root 36464 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_2.ko
20 2753 56 -rw-r--r-- 1 root root 56744 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_3.ko
21 2754 56 -rw-r--r-- 1 root root 57152 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_4.ko
22 2755 16 -rw-r--r-- 1 root root 16056 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_5.ko
23 2756 25 -rw-r--r-- 1 root root 25352 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_7.ko
24 2757 19 -rw-r--r-- 1 root root 18896 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/protocol-agents/stonegate_agent_9.ko
25 2759 10788 -rw-r--r-- 1 root root 11045920 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/stonegate.ko
26 2760 10 -rw-r--r-- 1 root root 9856 Jan 8 04:28 ./lib/modules/5.10.211+smp/stonegate/stonegate_drop_all.ko
27 9747 0 drwxr-xr-x 2 root root 3 Jan 8 04:29 ./usr/lib/python2.7/site-packages/stonegate
28 9748 1 -rw-r--r-- 1 root root 44 Jan 8 04:29 ./usr/lib/python2.7/site-packages/stonegate.pth
29 14180 1 -rw-r--r-- 1 root root 228 Jan 8 04:29 ./usr/lib/python3/dist-packages/stonegate-0.0.0.egg-info
30 15066 0 drwxr-xr-x 13 root root 234 Jan 8 04:33 ./usr/lib/stonegate
31 15178 1 -rwxr-xr-x 1 root root 735 Jan 8 04:29 ./usr/lib/stonegate/bin/stonegate-reinit-ldap
32 16106 4 -rwxr-xr-x 1 root root 3738 Jan 8 04:29 ./usr/sbin/start-stonegate
33 16107 2 -rwxr-xr-x 1 root root 1242 Jan 8 04:29 ./usr/sbin/stop-stonegate
34 16143 0 drwxr-xr-x 2 root root 40 Jan 8 04:33 ./usr/share/doc/stonegate
35 16952 0 drwxr-xr-x 10 root root 1614 Jan 8 04:35 ./usr/share/stonegate
36
37$ sudo find . -name "*ngfw*" -ls
38 1650 1 -rw-r--r-- 1 root root 6 Jan 8 04:28 ./etc/ngfw_os_version
39 3830 0 drwxr-xr-x 3 root root 35 Jan 8 04:28 ./usr/lib/ngfw-cfg-llm
40 3848 0 drwxr-xr-x 3 root root 26 Jan 8 04:28 ./usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg
41 4017 0 drwxr-xr-x 18 root root 372 Jan 8 04:28 ./usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/node_modules/@ngfw-cfg
42 6068 0 drwxr-xr-x 3 root root 35 Jan 8 04:28 ./usr/lib/ngfw-mon-llm
43 6072 0 drwxr-xr-x 3 root root 47 Jan 8 04:28 ./usr/lib/ngfw-mon-llm/node_modules/@ngfw-mon
44 6139 0 drwxr-xr-x 5 root root 75 Jan 8 04:28 ./usr/lib/ngfw-mon-llm/node_modules/@ngfw-mon/monitoring-domain-socket/node_modules/@ngfw-mon
45 9226 1 -rw-r--r-- 1 root root 642 Jan 8 04:35 ./usr/lib/python2.7/dist-packages/sg/scripts/check_ngfw_smc_status.pyc
46 9227 1 -rw-r--r-- 1 root root 813 Jan 8 04:35 ./usr/lib/python2.7/dist-packages/sg/scripts/check_ngfw_traffic_status.pyc
47 9228 6 -rw-r--r-- 1 root root 5704 Jan 8 04:35 ./usr/lib/python2.7/dist-packages/sg/scripts/set_ngfw_mgmt_info.pyc
48 9229 3 -rw-r--r-- 1 root root 3003 Jan 8 04:35 ./usr/lib/python2.7/dist-packages/sg/scripts/set_ngfw_network_info.pyc
49 13968 0 drwxr-xr-x 2 root root 163 Jan 8 04:35 ./usr/lib/python3/dist-packages/sg/ngfwcli
50 13972 2 -rw-r--r-- 1 root root 1970 Jan 8 04:29 ./usr/lib/python3/dist-packages/sg/ngfwcli/ngfwc.py
51 13973 38 -rw-r--r-- 1 root root 38794 Jan 8 04:29 ./usr/lib/python3/dist-packages/sg/ngfwcli/ngfwctl.py
52 13974 2 -rw-r--r-- 1 root root 1279 Jan 8 04:29 ./usr/lib/python3/dist-packages/sg/ngfwcli/ngfwlogin.py
53 13975 14 -rw-r--r-- 1 root root 13714 Jan 8 04:29 ./usr/lib/python3/dist-packages/sg/ngfwcli/ngfwmon.py
54 13976 2 -rw-r--r-- 1 root root 1958 Jan 8 04:29 ./usr/lib/python3/dist-packages/sg/ngfwcli/ngfwq.py
55 13977 0 drwxr-xr-x 2 root root 118 Jan 8 04:29 ./usr/lib/python3/dist-packages/sg/ngfwcli-70c6364b6352cde342f8b23d00203f90af96c20b.dist-info
En bonus le fichier sudoers :
1cat sudoers
2Defaults env_reset
3Defaults env_keep += "COVAUTOSAVE"
4Defaults env_keep += "SGSIDE"
5Defaults secure_path="/usr/sbin:/usr/bin:/sbin:/bin"
6Defaults timestampdir="/var/run/stonegate/sudo"
7Defaults ! fqdn
8Defaults ! mailerpath
9
10root ALL=(ALL:ALL) ALL
11
12#includedir /data/config/sudoers.d
13
14%sguser ALL=(ALL:ALL) /usr/sbin/vtysh, /usr/sbin/sg-dynamic-routing
15
16graphql ALL=(ALL:ALL) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/node_modules/.bin/commit-config
17graphql ALL=(ALL:ALL) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/libexec/dynup-extract
18graphql ALL=(ALL:ALL) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/libexec/engine-cmd
19graphql ALL=(ALL:ALL) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/libexec/upgrade-extract
20graphql ALL=(postgres) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/node_modules/.bin/backup-control
21graphql ALL=(postgres) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/node_modules/.bin/dynup-control
22graphql ALL=(postgres) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/node_modules/.bin/engine-migration
23postgres ALL=(ALL:ALL) NOPASSWD: /usr/lib/ngfw-cfg-llm/node_modules/@ngfw-cfg/llm/libexec/dynup-delete
24postgres ALL=(ALL:ALL) NOPASSWD: /usr/sbin/sg-key-backup
2.4 Partitions de Configuration : dd7 et dd8
Les 2 partitions sont montées au démarrage comme suit :
- /dev/sda8 on /data type ext4 (rw,relatime,errors=remount-ro,data=ordered)
- /dev/sda9 on /spool type ext4 (rw,relatime,errors=remount-ro,data=ordered)
3. Analyse Dynamique
- Branchement du port console sur un port Série.
- Utilisation d'un câble USB/Ethernet
- Install des drivers FTDI
- Utilisation de Putty sur port Serial
ZZ - Références
1- ForcePoint Installation Guide
